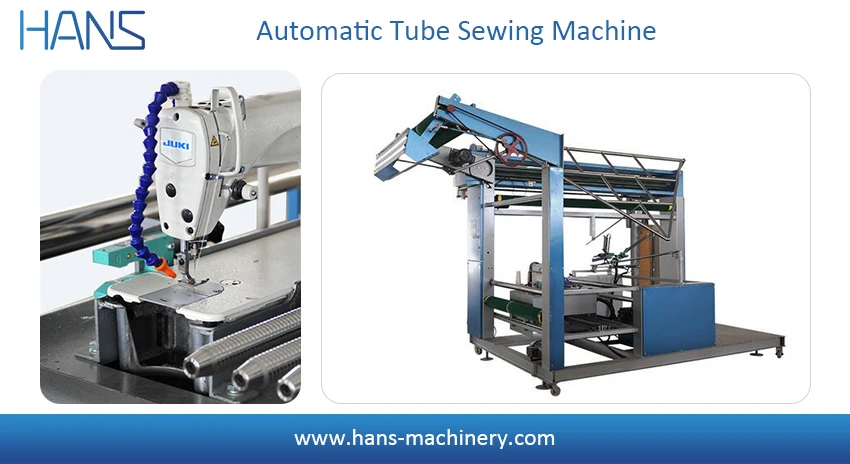

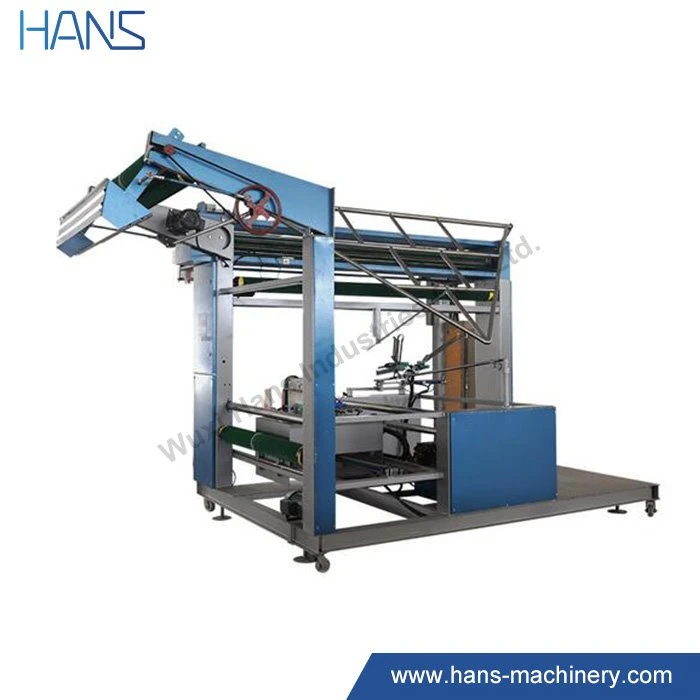

Automatic Tube Sewing Machine

Introduction

“HT-BSM”Tube Folding & Sewing Machine special used for knitted fabric , which suitable for folding & sewing before dyeing process, but after pre- heat setting process.

Specifications:

1. Model: HT-BSM-2600 Automatic Tube Sewing Machine

2. Max. working width: 2400mm

3. Sewing speed: 0-40m/min

4. Installed power: 5 KW

5. Voltage: 380V/50HZ

Features

1. This folding & tube sewing machine is equipped with 3 edge spreader, 2 small expander roller and 4 sets selvedge opening board, which ensure good edge opening result before sewing process

2. Infrared centering rod control the centering process of fabric, make sure fabric can be running in the centering section of machine

3. Fabric infeed tension adjust device

4. 7" touch screen controller +PLC Control

5. Automatic stoppage during machine running without fabrics

6. Sewing length adjustable

Technology Advantages

● we are willing to develop all new technology only if it’s required in application.

● Advantage technology, especially machine design, high quality welding process, and advanced electrical components.

● All our technology innovation only for one aim--- the best quality, even that means a higher cost and lower production rate.

Our service

● Provide the technical design and solutions;

● New project free guidance ;

● Designing and manufacturing of non-standard equipment;

● Professional technical training and guidance on site according to the contract;

● Supply accessories at any time;

● Tele-technical consulting and services;

● Other special technical service according to client’s requirements.

Delivery Choice

-Express way

-AIR Transportation

-SEA Transportation

Hot Tags: automatic tube sewing machine, China, suppliers, manufacturers, factory, custom, price
